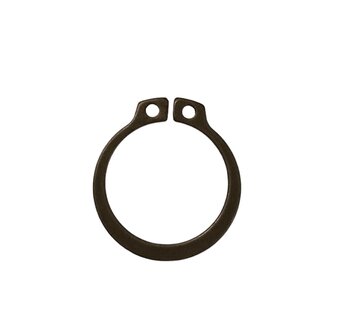

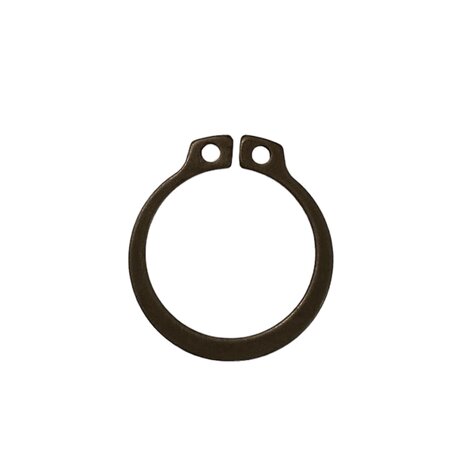

Retaining ring DIN 471 22mm (F9/G9/H33) Retaining ring DIN 471 22mm (F9/G9/H33) Retaining ring DIN 471 22mm (F9/G9/H33) Retaining ring DIN 471 22mm (F9/G9/H33)
Retaining ring DIN 471 22mm (F9/G9/H33) Retaining ring DIN 471 22mm (F9/G9/H33) Retaining ring DIN 471 22mm (F9/G9/H33) Retaining ring DIN 471 22mm (F9/G9/H33)
Retaining ring DIN 471 22mm (F9/G9/H33)
Specifications Material                     Spring steel For nom. size  22 Nom....

Shipping costs

€ 11,52

€ 0,99
Price per unit

Stock : 41

Quantity:
Order


Specifications

Material                     Spring steel
For nom. size  22
Nom. size shaft d1  22
Info
  • d4 is the minimum required installation space.
  • During assembly it is essential to not overspread the rings, a maximum spread of 1,01 x d1 is recommended. For proper installation use pliers with spread limiter or assemble the aid of a cone.
Info
  • Warning: electroplating of these products may cause hydrogen embrittlement.

Dimensions

Groove d2  21
Groove m (H13)   1.3
Groove n (min.)  1.5
Ring d3  20.5
Ring d4  30.8
Ring s  1.2
Ring b ≈  2.8
